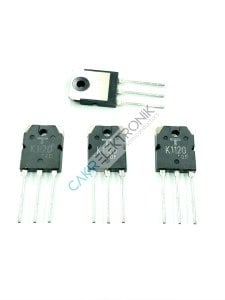

2SK1120 - K1120 - 8A. 1000V. N KANAL MOSFET - TO-3PML

Type Designator: 2SK1120

Marking Code: K1120

Type of Transistor: MOSFET

Type of Control Channel: N -Channel

Maximum Power Dissipation (Pd): 150 W

Maximum Drain-Source Voltage |Vds|: 1000 V

Maximum Gate-Source Voltage |Vgs|: 20 V

Maximum Gate-Threshold Voltage |Vgs(th)|: 3.5 V

Maximum Drain Current |Id|: 8 A

Maximum Junction Temperature (Tj): 150 °C

Total Gate Charge (Qg): 120 nC

Rise Time (tr): 25 nS

Drain-Source Capacitance (Cd): 180 pF

Maximum Drain-Source On-State Resistance (Rds): 1.8 Ohm
