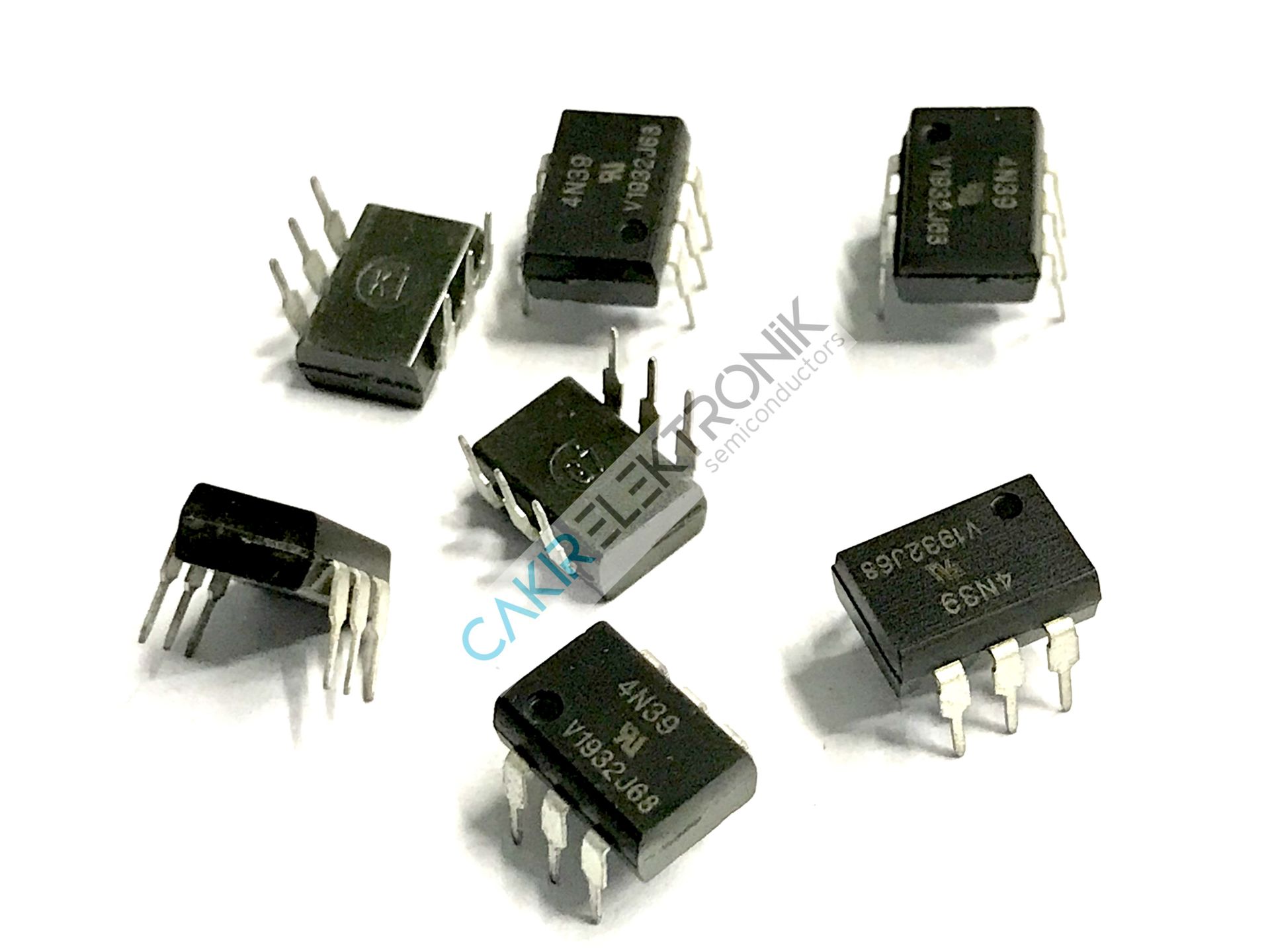

4N39 , 4N39 DIP , Optoisolator SCR Output 5300Vrms 1 Channel 6-DIP
Kategori
Stok Kodu
11-721
0,55 USD + KDV
23,51 TL
Kalan Stok : 50
4N39 , 4N39 DIP , Optoisolator SCR Output 5300Vrms 1 Channel 6-DIP
|
Packaging
|
Tube
|
|
|
Part Status
|
Obsolete
|
|
|
Output Type
|
SCR
|
|
|
Zero Crossing Circuit
|
No
|
|
|
Number of Channels
|
1
|
|
|
Voltage - Isolation
|
5300Vrms
|
|
|
Voltage - Off State
|
200 V
|
|
|
Static dV/dt (Min)
|
500V/µs
|
|
|
Current - LED Trigger (Ift) (Max)
|
30mA
|
|
|
Current - On State (It (RMS)) (Max)
|
300 mA
|
|
|
Current - Hold (Ih)
|
1mA
|
|
|
Turn On Time
|
50µs (Max)
|
|
|
Voltage - Forward (Vf) (Typ)
|
1.1V
|
|
|
Current - DC Forward (If) (Max)
|
60 mA
|
|
|
Operating Temperature
|
-55°C ~ 100°C
|
|
|
Mounting Type
|
Through Hole
|
|
|
Package / Case
|
6-DIP (0.300", 7.62mm)
|
|
|
Supplier Device Package
|
6-DIP
|
|
|
Approval Agency
|
UR
|
|
|
Base Product Number
|
|
