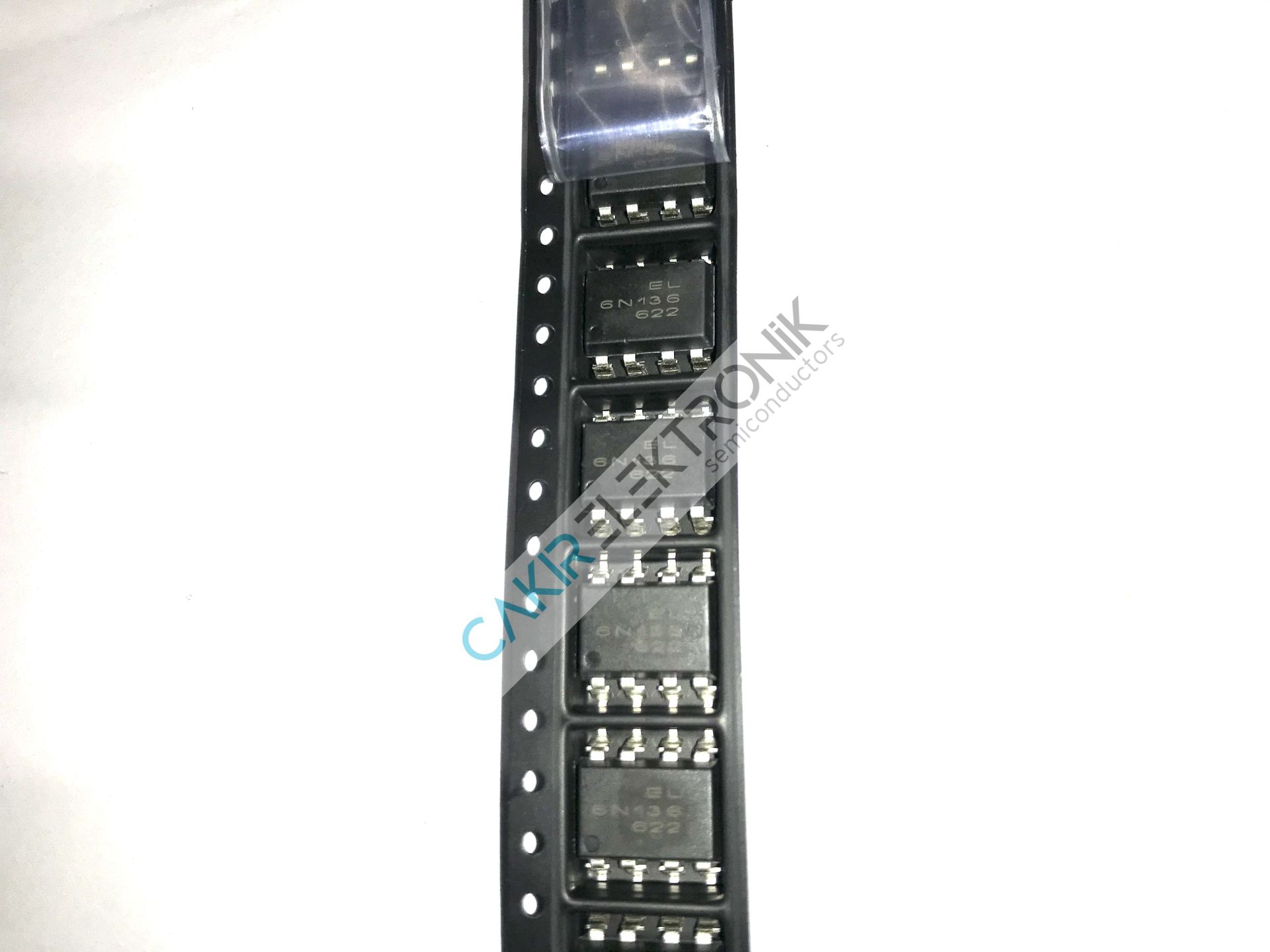

6N136S , 6N136 SMD , Optoisolator Transistor with Base Output 5000Vrms 1 Channel 8-SMD
Kategori
Stok Kodu
11-5278
0,55 USD + KDV
23,51 TL
Kalan Stok : 30
6N136S , 6N136 SMD , Optoisolator Transistor with Base Output 5000Vrms 1 Channel 8-SMD
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Number of Channels
|
1
|
|
|
Voltage - Isolation
|
5000Vrms
|
|
|
Current Transfer Ratio (Min)
|
19% @ 16mA
|
|
|
Current Transfer Ratio (Max)
|
50% @ 16mA
|
|
|
Turn On / Turn Off Time (Typ)
|
100ns, 400ns
|
|
|
Rise / Fall Time (Typ)
|
-
|
|
|
Input Type
|
DC
|
|
|
Output Type
|
Transistor with Base
|
|
|
Voltage - Output (Max)
|
20V
|
|
|
Current - Output / Channel
|
8mA
|
|
|
Voltage - Forward (Vf) (Typ)
|
1.4V
|
|
|
Current - DC Forward (If) (Max)
|
25 mA
|
|
|
Vce Saturation (Max)
|
-
|
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
8-SMD, Gull Wing
|
|
|
Supplier Device Package
|
8-SMD
|
|
|
Base Product Number
|
|
