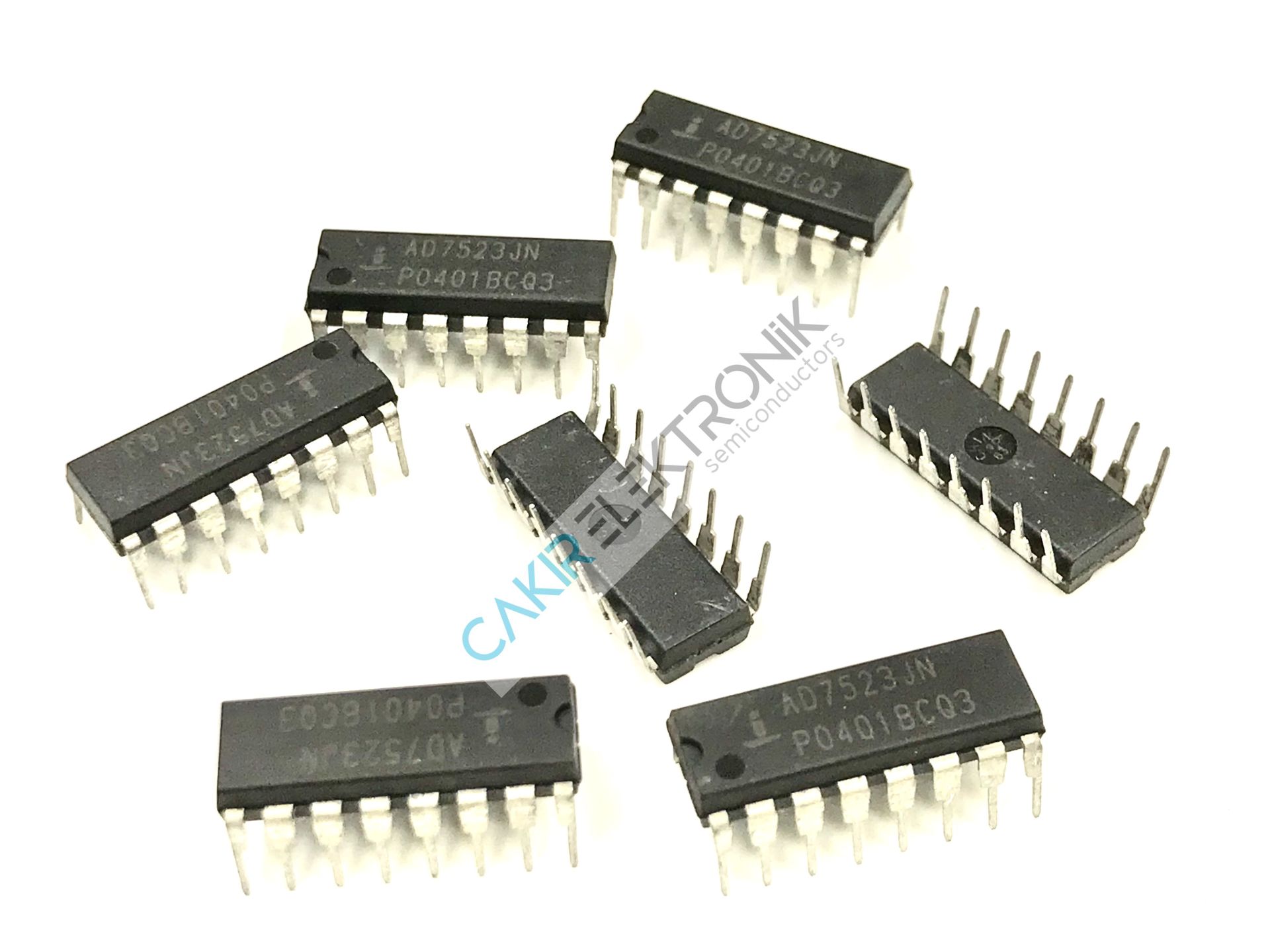

AD7523JN , AD7523 DIP , 8-Bit, Multiplying D/A Converters
Features
• 8-Bit, 9-Bit and 10-Bit Linearity
• Low Gain and Linearity Temperature Coefficients
• Full Temperature Range Operation
• Static Discharge Input Protection
• TTL/CMOS Compatible
• Supply Range . . . . . . . . . . . . . . . . . . . . . . . . +5V to +15V
• Fast Settling Time at 25
o
C . . . . . . . . . . . . 150ns (Max)
• Four Quadrant Multiplication
• AD7533 Direct AD7520 Equivalent
Description
The AD7523 and AD7533 are monolithic, low cost, high
performance, 8-bit and 10-bit accurate, multiplying digital-to-
analog converter (DAC), in a 16 pin DIP.
Intersil’ thin film resistors on CMOS circuitry provide 10-bit
resolution (8-bit, 9-bit and 10-bit accuracy), with TTL/CMOS
compatible operation.
The AD7523 and AD7533s accurate four quadrant
multiplication, full military temperature range operation, full
input protection from damage due to static discharge by
clamps to V+ and GND, and very low power dissipation
make it a very versatile converter.
Low noise audio gain controls, motor speed controls,
digitally controlled gain and digital attenuators are a few of
the wide range of applications of the AD7523 and AD7533.
Ordering Information
PART NUMBER
LINEARITY (INL, DNL)
TEMP. RANGE (
o
C)
PACKAGE
PKG. NO.
AD7523JN, AD7533JN
0.2% (8-Bit)
0 to 70
16 Ld PDIP
E16.3
AD7523KN, AD7533KN
0.1% (9-Bit)
0 to 70
16 Ld PDIP
E16.3
AD7523LN, AD7533LN
0.05% (10-Bit)
0 to 70
16 Ld PDIP
E16.3
Pinout
AD7523, AD7533
(PDIP)
TOP VIEW
NOTE:
1. NC for AD7523 only.
Functional Block Diagram
NOTE: Switches shown for digital inputs “High”
14
15
16
9
13
12
11
10
1
2
3
4
5
7
6
8
I
OUT1
I
OUT2
GND
BIT 1 (MSB)
BIT 2
BIT 3
BIT 5
BIT 4
R
FEEDBACK
V+
NC/BIT 10
NC/BIT 9
BIT 8
BIT 7
BIT 6
V
REF IN
(NOTE 1)
(NOTE 1)
MSB
(4)
20k
Ω
(3)
BIT 3
BIT 2
V
REF IN
20k
Ω
20k
Ω
20k
Ω
20k
Ω
20k
Ω
10k
Ω
10k
Ω
10k
Ω
10k
Ω
SPDT
NMOS
10k
Ω
I
OUT2
(2)
I
OUT1
(1)
R
FEEDBACK
(15)
SWITCHES
(16)
(5)
(6)
File Number
3105.1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
http://www.intersil.com or 407-727-9207
|
Copyright
©
Intersil Corporation 1999
