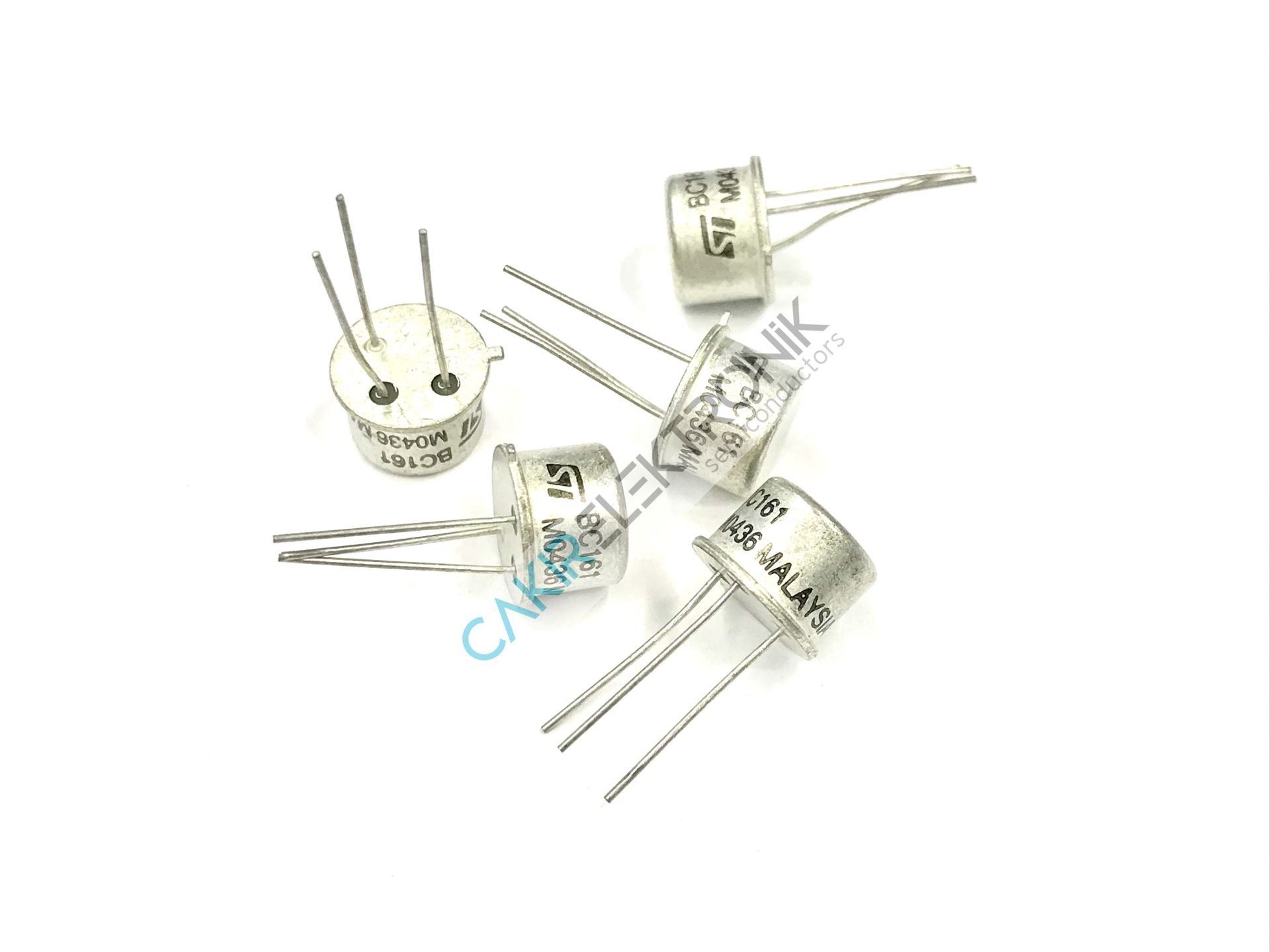

BC161 - TO-39 1A 60V 3.2W PNP TRANSISTOR

Type Designator: BC161

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 3.2 W

Maximum Collector-Base Voltage |Vcb|: 60 V

Maximum Collector-Emitter Voltage |Vce|: 60 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 1 A

Max. Operating Junction Temperature (Tj): 175 °C

Transition Frequency (ft): 50 MHz

Collector Capacitance (Cc): 30 pF

Forward Current Transfer Ratio (hFE), MIN: 100
