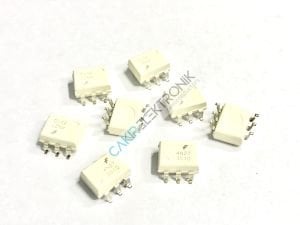

FAIRCHILD 4N27SR2M , FAIRCHILD 4N27 DIP , 4N27 , Optoisolator Transistor with Base Output 4170Vrms 1 Channel 6-SMD
Kategori
Stok Kodu
11-683
0,27 USD + KDV
12,34 TL
Kalan Stok : 50
FAIRCHILD 4N27SR2M , FAIRCHILD 4N27 DIP , 4N27 , Optoisolator Transistor with Base Output 4170Vrms 1 Channel 6-SMD
|
Manufacturer
|
Fairchild Semiconductor
|
|
|
Series
|
-
|
|
|
Packaging
|
Bulk
|
|
|
Part Status
|
Active
|
|
|
Number of Channels
|
1
|
|
|
Voltage - Isolation
|
4170Vrms
|
|
|
Current Transfer Ratio (Min)
|
10% @ 10mA
|
|
|
Current Transfer Ratio (Max)
|
-
|
|
|
Turn On / Turn Off Time (Typ)
|
2µs, 2µs
|
|
|
Rise / Fall Time (Typ)
|
-
|
|
|
Input Type
|
DC
|
|
|
Output Type
|
Transistor with Base
|
|
|
Voltage - Output (Max)
|
30V
|
|
|
Current - Output / Channel
|
-
|
|
|
Voltage - Forward (Vf) (Typ)
|
1.18V
|
|
|
Current - DC Forward (If) (Max)
|
60 mA
|
|
|
Vce Saturation (Max)
|
500mV
|
|
|
Operating Temperature
|
-40°C ~ 100°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
6-SMD, Gull Wing
|
|
|
Supplier Device Package
|
6-SMD
|
