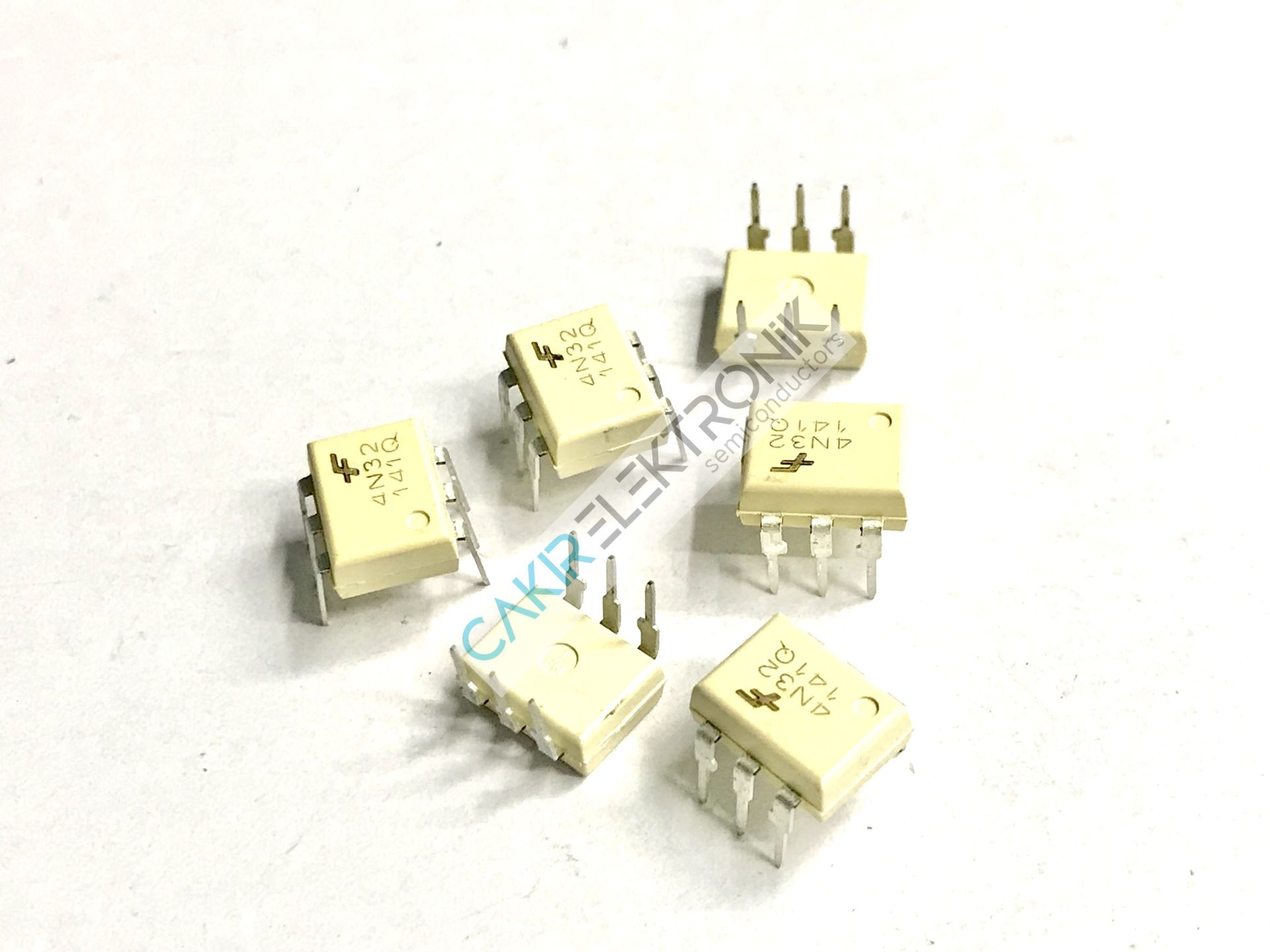

FAIRCHILD 4N32 DIP , 4N32 OPTO , 4N32M , Optoisolator Darlington with Base Output 5000Vrms 1 Channel 6-DIP
Kategori
Stok Kodu
11-4710
0,37 USD + KDV
16,91 TL
Kalan Stok : 46
FAIRCHILD 4N32 DIP , 4N32 OPTO , 4N32M , Optoisolator Darlington with Base Output 5000Vrms 1 Channel 6-DIP
|
Packaging
|
Tube
|
|
|
Part Status
|
Active
|
|
|
Number of Channels
|
1
|
|
|
Voltage - Isolation
|
5000Vrms
|
|
|
Current Transfer Ratio (Min)
|
500% @ 10mA
|
|
|
Current Transfer Ratio (Max)
|
-
|
|
|
Turn On / Turn Off Time (Typ)
|
5µs, 100µs (Max)
|
|
|
Rise / Fall Time (Typ)
|
-
|
|
|
Input Type
|
DC
|
|
|
Output Type
|
Darlington with Base
|
|
|
Voltage - Output (Max)
|
55V
|
|
|
Current - Output / Channel
|
-
|
|
|
Voltage - Forward (Vf) (Typ)
|
1.2V
|
|
|
Current - DC Forward (If) (Max)
|
60 mA
|
|
|
Vce Saturation (Max)
|
1V
|
|
|
Operating Temperature
|
-55°C ~ 100°C
|
|
|
Mounting Type
|
Through Hole
|
|
|
Package / Case
|
6-DIP (0.400", 10.16mm)
|
|
|
Supplier Device Package
|
6-DIP
|
