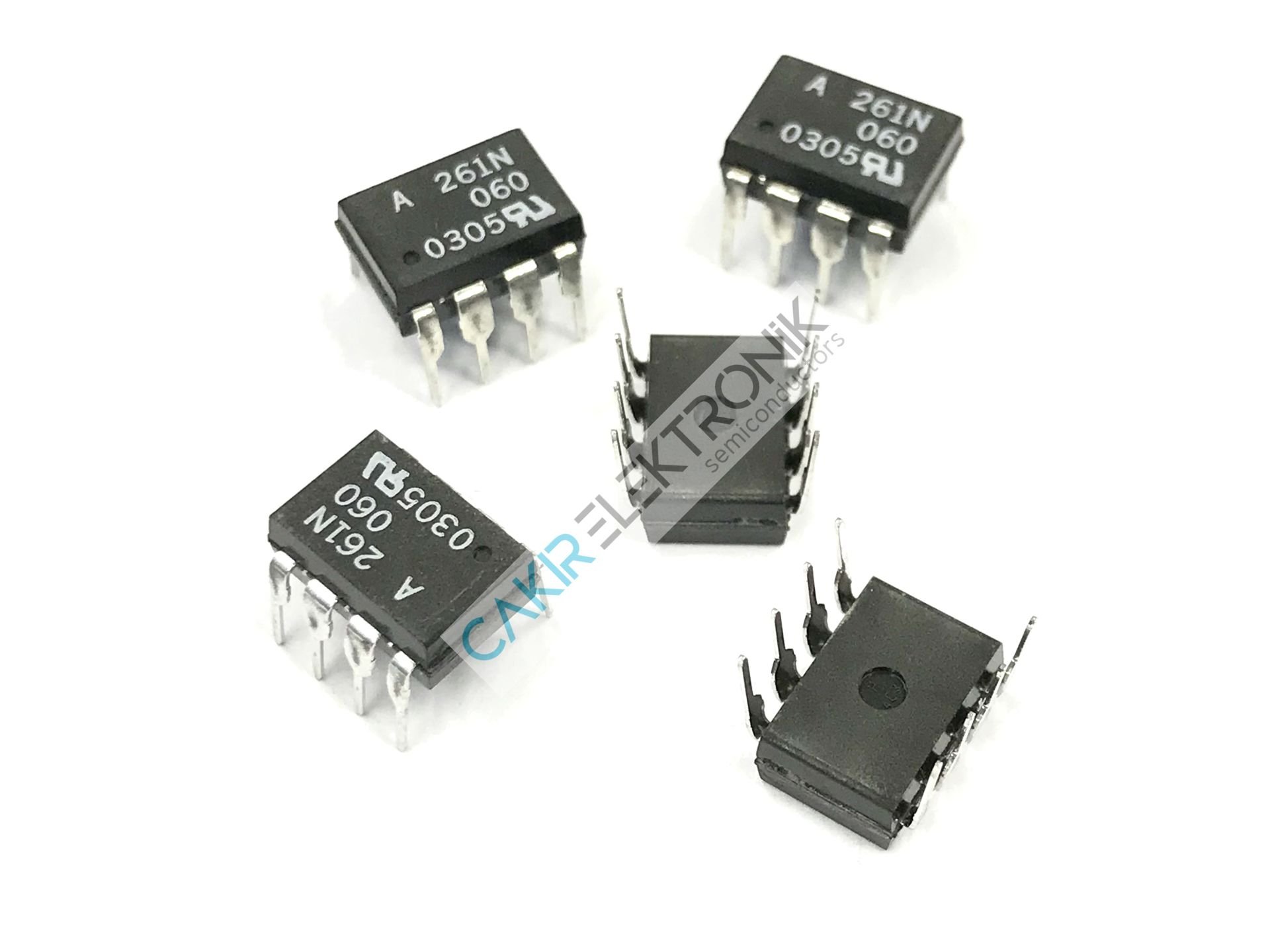

HCPL-261N-000E , HCPL-261N , HCPL261 , A261N , A 261N , Logic Output Optoisolator 10MBd Open Collector, Schottky Clamped 3750Vrms 1 Channel 1kV/µs CMTI 8-DIP
Kategori
Stok Kodu
11-5202
5,50 USD + KDV
253,69 TL
Kalan Stok : 20
HCPL-261N-000E , HCPL-261N , HCPL261 , A261N , A 261N , Logic Output Optoisolator 10MBd Open Collector, Schottky Clamped 3750Vrms 1 Channel 1kV/µs CMTI 8-DIP
|
Manufacturer
|
Broadcom Limited
|
|
|
Series
|
-
|
|
|
Packaging
|
Tube
|
|
|
Part Status
|
Active
|
|
|
Number of Channels
|
1
|
|
|
Inputs - Side 1/Side 2
|
1/0
|
|
|
Voltage - Isolation
|
3750Vrms
|
|
|
Common Mode Transient Immunity (Min)
|
1kV/µs
|
|
|
Input Type
|
DC
|
|
|
Output Type
|
Open Collector, Schottky Clamped
|
|
|
Current - Output / Channel
|
50 mA
|
|
|
Data Rate
|
10MBd
|
|
|
Propagation Delay tpLH / tpHL (Max)
|
100ns, 100ns
|
|
|
Rise / Fall Time (Typ)
|
42ns, 12ns
|
|
|
Voltage - Forward (Vf) (Typ)
|
1.3V
|
|
|
Current - DC Forward (If) (Max)
|
10mA
|
|
|
Voltage - Supply
|
4.5V ~ 5.5V
|
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
|
Mounting Type
|
Through Hole
|
|
|
Package / Case
|
8-DIP (0.300", 7.62mm)
|
|
|
Supplier Device Package
|
8-DIP
|
|
|
Base Product Number
|
