IRF7425 , IRF7425TRPBF , 7425 , MOSFET P-CH 20V 15A SO-8
Kategori
Stok Kodu
11-5165
2,10 USD + KDV
95,70 TL
Kalan Stok : 25

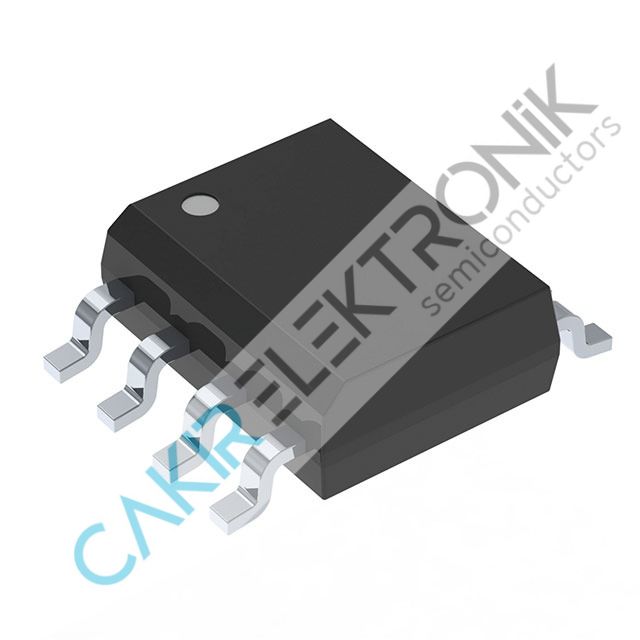

IRF7425 , IRF7425TRPBF , 7425 , MOSFET P-CH 20V 15A SO-8
|
Mfr
|
|
|
|
Series
|
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
FET Type
|
|
|
|
Technology
|
|
|
|
Drain to Source Voltage (Vdss)
|
20 V
|
|
|
Current - Continuous Drain (Id) @ 25°C
|
|
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
2.5V, 4.5V
|
|
|
Rds On (Max) @ Id, Vgs
|
8.2mOhm @ 15A, 4.5V
|
|
|
Vgs(th) (Max) @ Id
|
1.2V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs
|
130 nC @ 4.5 V
|
|
|
Vgs (Max)
|
±12V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
7980 pF @ 15 V
|
|
|
FET Feature
|
-
|
|
|
Power Dissipation (Max)
|
2.5W (Ta)
|
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Supplier Device Package
|
8-SO
|
|
|
Package / Case
|
