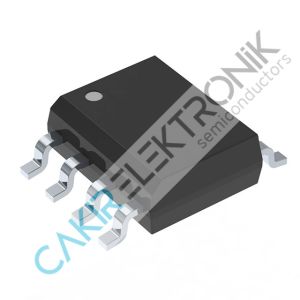

IRF7456 , IRF7456TRPBF , 7456 , N-Channel 20 V 16A (Ta) 2.5W (Ta) Surface Mount 8-SO
Kategori
Stok Kodu
11-5171
1,00 USD + KDV
42,74 TL
Kalan Stok : 50
IRF7456 , IRF7456TRPBF , 7456 , N-Channel 20 V 16A (Ta) 2.5W (Ta) Surface Mount 8-SO
|
Mfr
|
|
|
|
Series
|
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Obsolete
|
|
|
FET Type
|
|
|
|
Technology
|
|
|
|
Drain to Source Voltage (Vdss)
|
20 V
|
|
|
Current - Continuous Drain (Id) @ 25°C
|
|
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
2.8V, 10V
|
|
|
Rds On (Max) @ Id, Vgs
|
6.5mOhm @ 16A, 10V
|
|
|
Vgs(th) (Max) @ Id
|
2V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs
|
62 nC @ 5 V
|
|
|
Vgs (Max)
|
±12V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
3640 pF @ 15 V
|
|
|
FET Feature
|
-
|
|
|
Power Dissipation (Max)
|
2.5W (Ta)
|
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Supplier Device Package
|
8-SO
|
|
|
Package / Case
|
|
|
