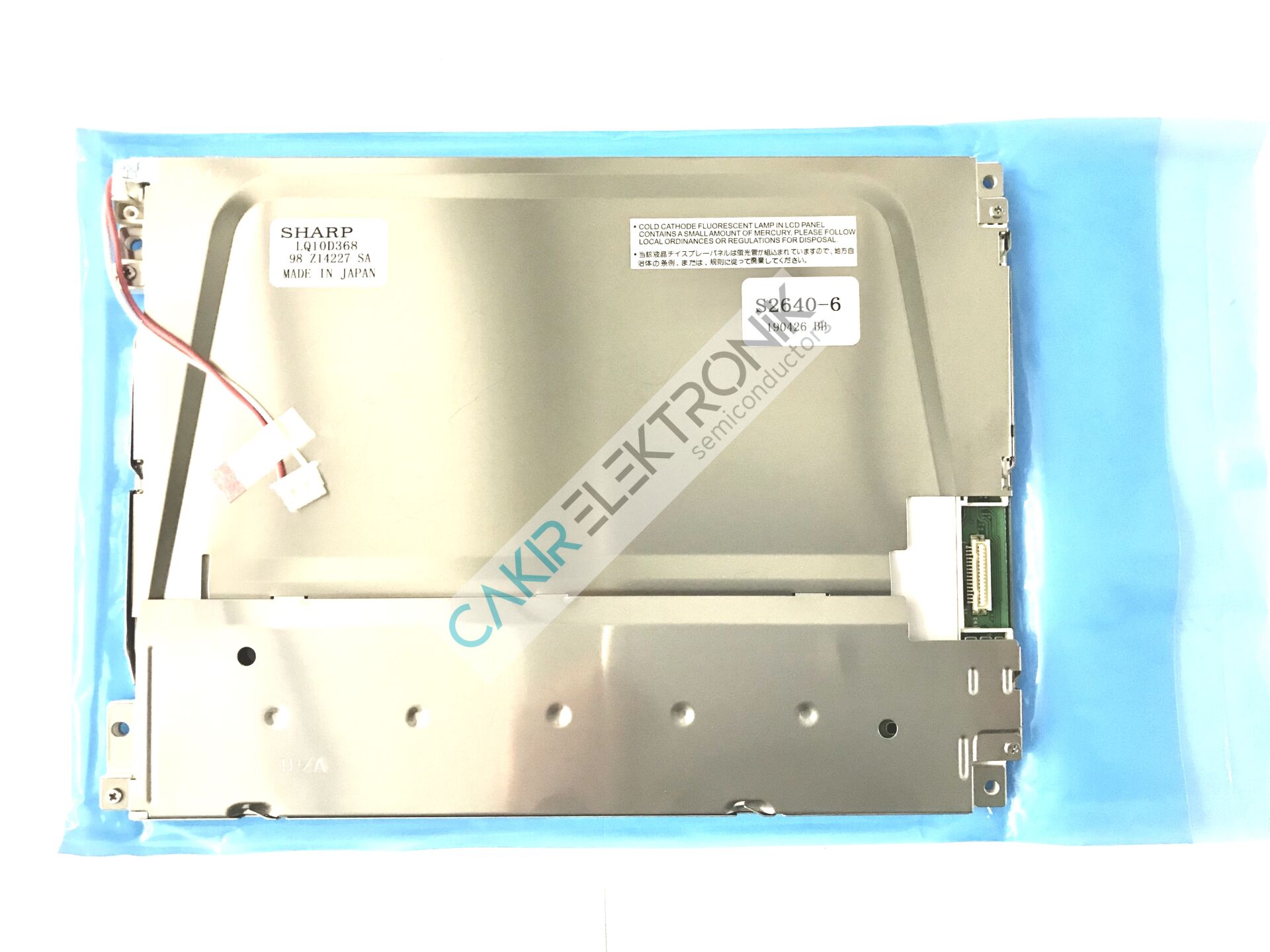

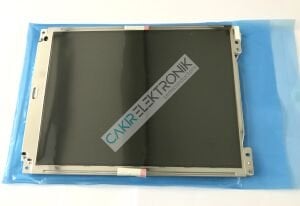

LQ10D368 - LQ10D367 - (NL6448BC33-64) LCD

Size: 10.4 in.
Active Area (H x W):158.4 x 211.2 (mm)
Outline Dimensions: (H x W x D) 179.4 x 246.5 x 10.5 (mm)
Resolution: 640 x 480
Pixel Pitch: .110(H) x .330(W)
Pixel Arrangement:RGB Vertical Stripe
Display Mode:Normally White
Brightness: 200
Brightness Uniformity: 0
Contrast Ratio: 300:1
Colors:262,144
Horizontal Viewing Angle (L/R): 70 / 70
Vertical Viewing Angle (U/D): 40 / 70
Response Time: 60
Input Voltage: 3.3 V
Interface: 1 ch. LVDS
