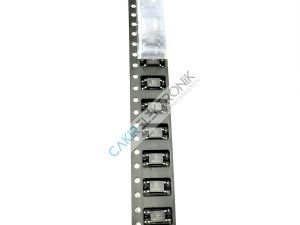

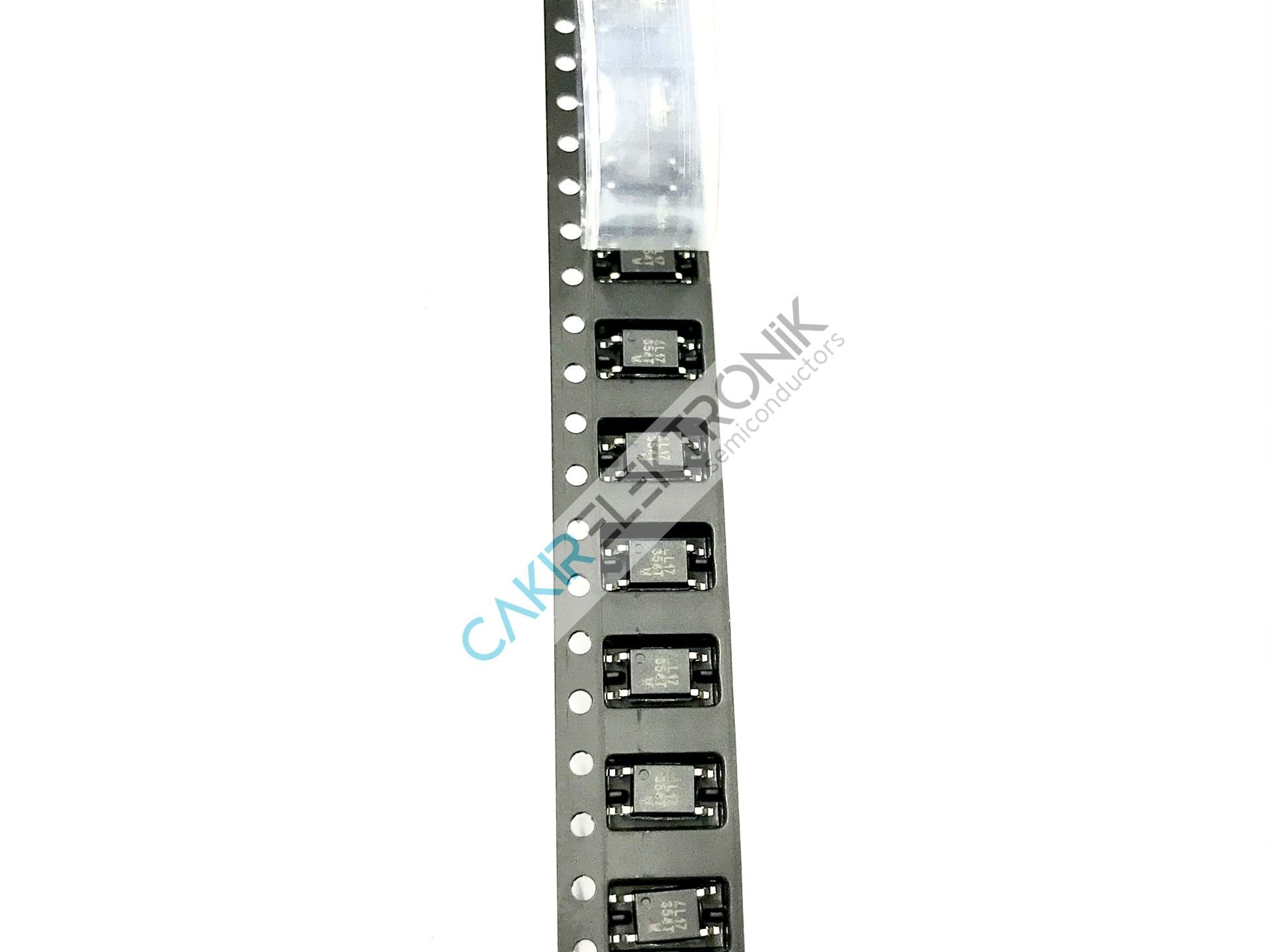

354T , LTV-354T , LTV-354 , LTV354 , LTV354T , Optoisolator Transistor Output 3750Vrms 1 Channel 4-SOP
Kategori
Stok Kodu
11-5279
0,15 USD + KDV
6,45 TL
Kalan Stok : 50
LTV-354T , LTV-354 , LTV354 , LTV354T , Optoisolator Transistor Output 3750Vrms 1 Channel 4-SOP
|
Manufacturer
|
Lite-On Inc.
|
|
|
Series
|
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Number of Channels
|
1
|
|
|
Voltage - Isolation
|
3750Vrms
|
|
|
Current Transfer Ratio (Min)
|
20% @ 1mA
|
|
|
Current Transfer Ratio (Max)
|
400% @ 1mA
|
|
|
Turn On / Turn Off Time (Typ)
|
-
|
|
|
Rise / Fall Time (Typ)
|
4µs, 3µs
|
|
|
Input Type
|
AC, DC
|
|
|
Output Type
|
Transistor
|
|
|
Voltage - Output (Max)
|
35V
|
|
|
Current - Output / Channel
|
50mA
|
|
|
Voltage - Forward (Vf) (Typ)
|
1.2V
|
|
|
Current - DC Forward (If) (Max)
|
50 mA
|
|
|
Vce Saturation (Max)
|
200mV
|
|
|
Grade
|
-
|
|
|
Operating Temperature
|
-30°C ~ 110°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
4-SMD, Gull Wing
|
|
|
Supplier Device Package
|
4-SOP
|
|
|
Base Product Number
|
