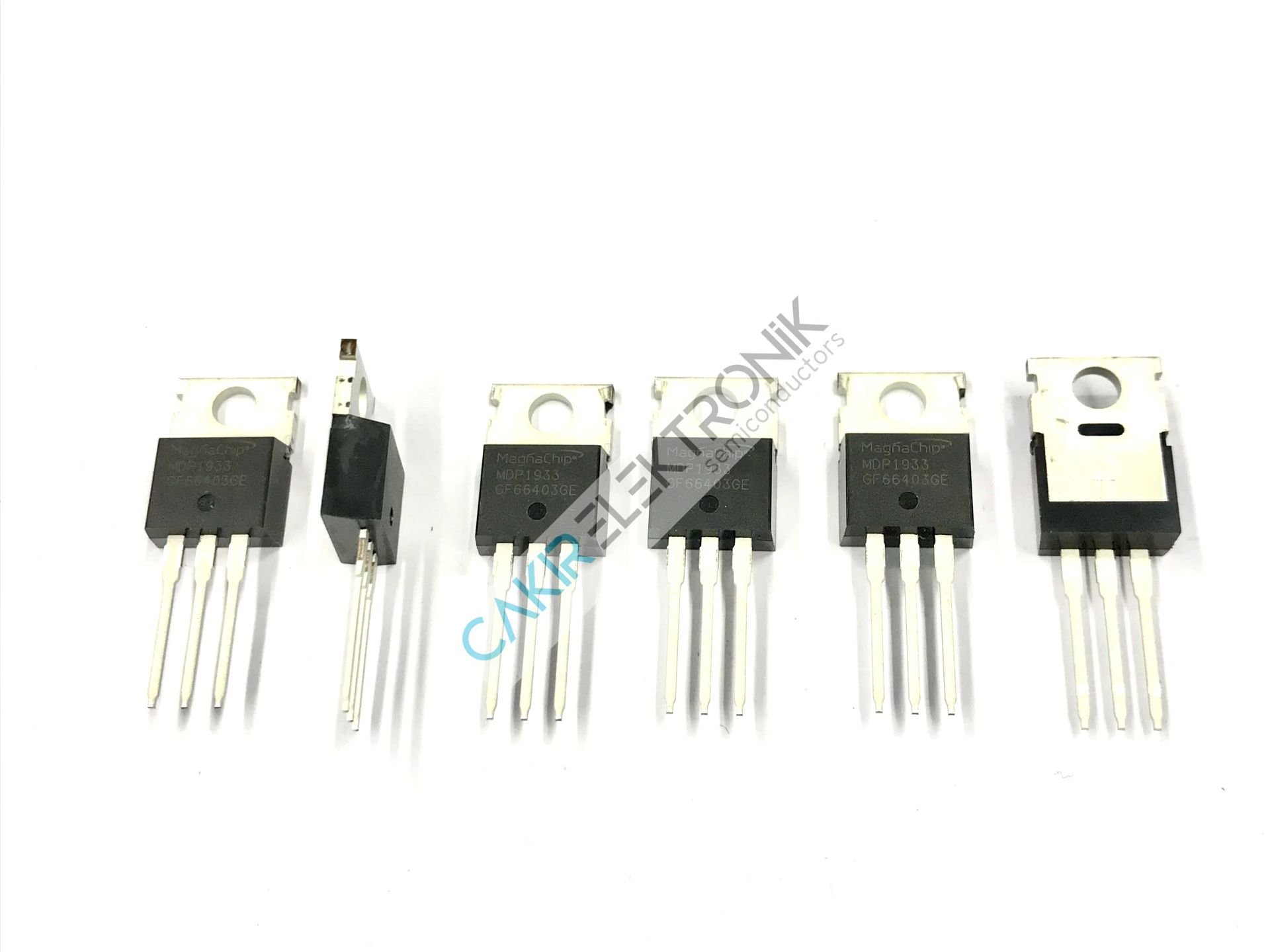

MDP1933TH , MDP1933 , Trans MOSFET N-CH Si 80V 105A 3-Pin(3+Tab) TO-220 Tube
Kategori
Stok Kodu
11-210
3,00 USD + KDV
136,92 TL
Kalan Stok : 21
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8541.29.00.95 |
| Automotive | Unknown |
| PPAP | Unknown |
| Product Category | Power MOSFET |
| Material | Si |
| Configuration | Single |
| Process Technology | TMOS |
| Channel Mode | Enhancement |
| Channel Type | N |
| Number of Elements per Chip | 1 |
| Maximum Drain Source Voltage (V) | 80 |
| Maximum Gate Source Voltage (V) | ±20 |
| Maximum Gate Threshold Voltage (V) | 4 |
| Maximum Continuous Drain Current (A) | 105 |
| Maximum Gate Source Leakage Current (nA) | 100 |
| Maximum IDSS (uA) | 1 |
| Maximum Drain Source Resistance (mOhm) | 7@10V |
| Typical Gate Charge @ Vgs (nC) | 59.4@10V |
| Typical Gate Charge @ 10V (nC) | 59.4 |
| Typical Input Capacitance @ Vds (pF) | 3841@40V |
| Maximum Power Dissipation (mW) | 157000 |
| Typical Fall Time (ns) | 15.1 |
| Typical Rise Time (ns) | 32.7 |
| Typical Turn-Off Delay Time (ns) | 24.2 |
| Typical Turn-On Delay Time (ns) | 15.6 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Temperature (°C) | 150 |
| Packaging | Tube |
| Mounting | Through Hole |
| Package Height | 9.65(Max) |
| Package Width | 4.83(Max) |
| Package Length | 10.67(Max) |
| PCB changed | 3 |
| Tab | Tab |
| Standard Package Name | TO |
| Supplier Package | TO-220 |
| Pin Count | 3 |
