EL816 , EL816 DIP , Opto isolator Transistor Output 5000Vrms 1 Channel 4-DIP
Kategori
Stok Kodu
11-4738
0,18 USD + KDV
7,74 TL
Kalan Stok : 100

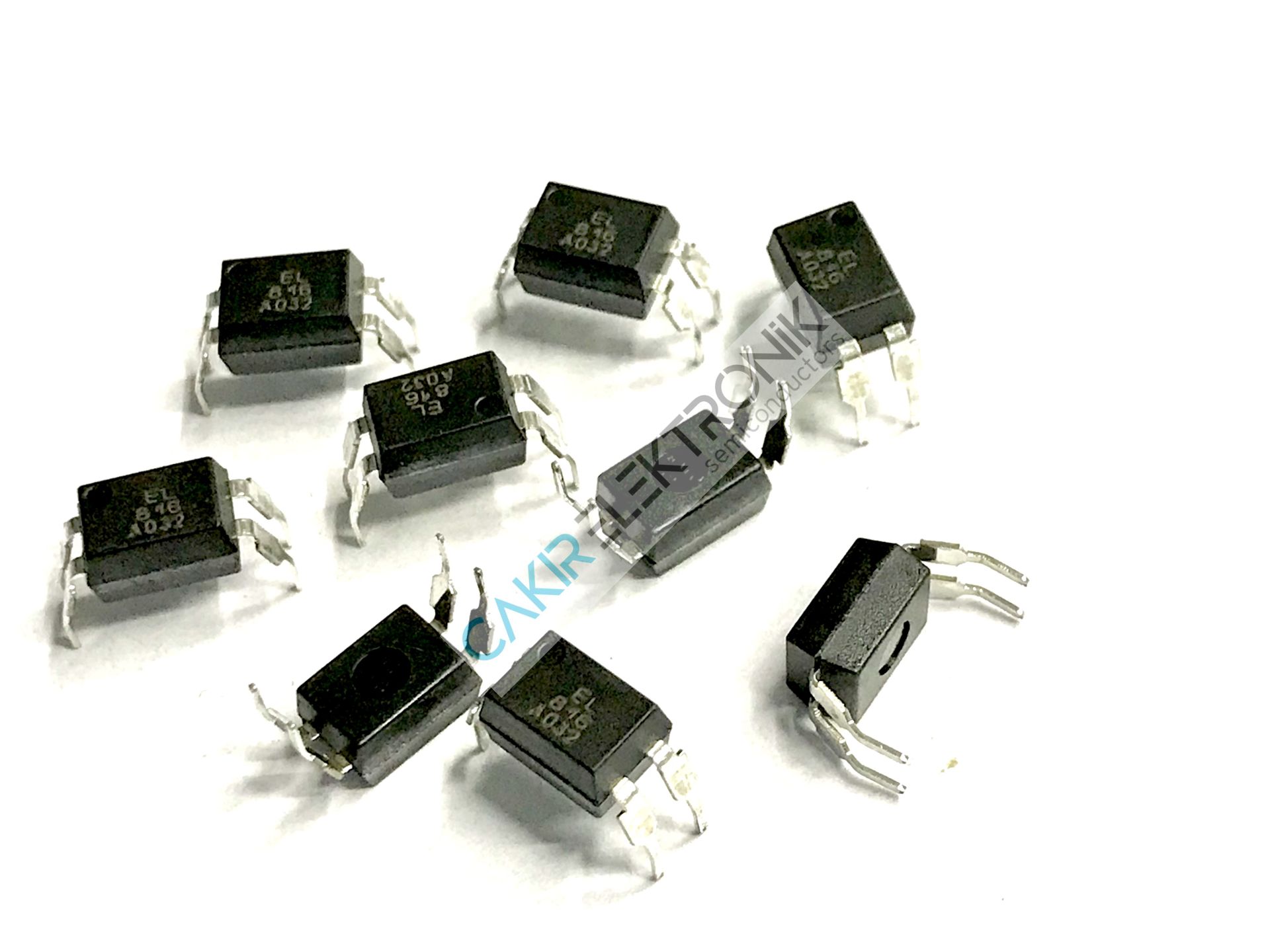

EL816 , EL816 DIP , Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP
|
Manufacturer
|
Everlight Electronics Co Ltd
|
|
|
Series
|
-
|
|
|
Packaging
|
Tube
|
|
|
Part Status
|
Active
|
|
|
Number of Channels
|
1
|
|
|
Voltage - Isolation
|
5000Vrms
|
|
|
Current Transfer Ratio (Min)
|
50% @ 5mA
|
|
|
Current Transfer Ratio (Max)
|
600% @ 5mA
|
|
|
Turn On / Turn Off Time (Typ)
|
-
|
|
|
Rise / Fall Time (Typ)
|
4µs, 3µs
|
|
|
Input Type
|
DC
|
|
|
Output Type
|
Transistor
|
|
|
Voltage - Output (Max)
|
80V
|
|
|
Current - Output / Channel
|
50mA
|
|
|
Voltage - Forward (Vf) (Typ)
|
1.2V
|
|
|
Current - DC Forward (If) (Max)
|
60 mA
|
|
|
Vce Saturation (Max)
|
200mV
|
|
|
Operating Temperature
|
-55°C ~ 110°C
|
|
|
Mounting Type
|
Through Hole
|
|
|
Package / Case
|
4-DIP (0.300", 7.62mm)
|
|
|
Supplier Device Package
|
4-DIP
|
