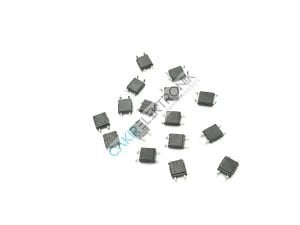

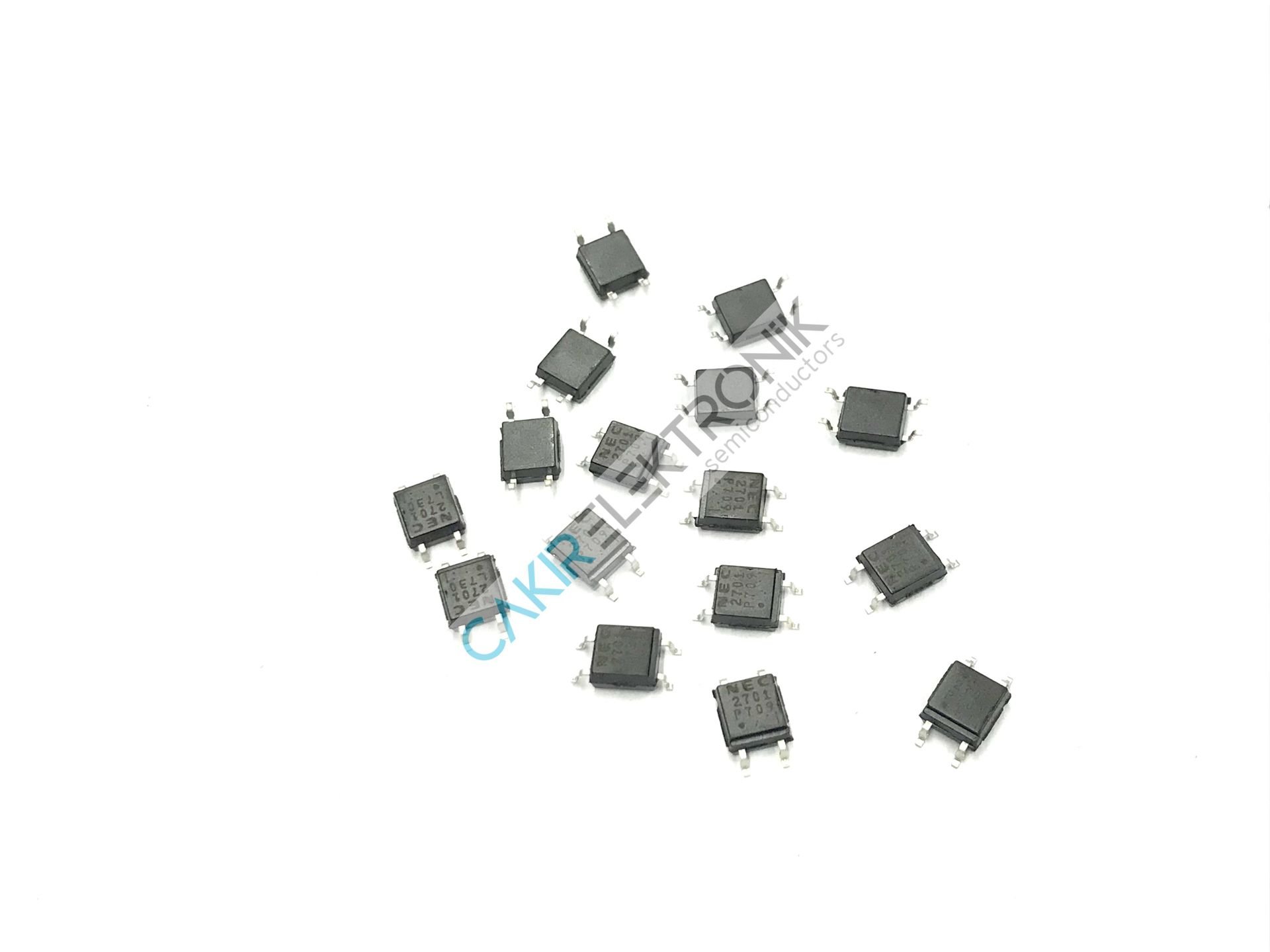

PS2701-1-F3-A - PS2701-1 - Optoisolator Transistor Output 3750Vrms 1 Channel 4-SOP
Kategori
Stok Kodu
11-5280
1,40 USD + KDV
60,43 TL
Kalan Stok : 50
PS2701-1-F3-A - PS2701-1 - Optoisolator Transistor Output 3750Vrms 1 Channel 4-SOP
|
Manufacturer
|
Renesas Electronics Corporation
|
|
|
Series
|
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Not For New Designs
|
|
|
Number of Channels
|
1
|
|
|
Voltage - Isolation
|
3750Vrms
|
|
|
Current Transfer Ratio (Min)
|
50% @ 5mA
|
|
|
Current Transfer Ratio (Max)
|
300% @ 5mA
|
|
|
Turn On / Turn Off Time (Typ)
|
-
|
|
|
Rise / Fall Time (Typ)
|
3µs, 5µs
|
|
|
Input Type
|
DC
|
|
|
Output Type
|
Transistor
|
|
|
Voltage - Output (Max)
|
40V
|
|
|
Current - Output / Channel
|
80mA
|
|
|
Voltage - Forward (Vf) (Typ)
|
1.1V
|
|
|
Current - DC Forward (If) (Max)
|
50 mA
|
|
|
Vce Saturation (Max)
|
300mV
|
|
|
Operating Temperature
|
-55°C ~ 100°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
4-SMD, Gull Wing
|
|
|
Supplier Device Package
|
4-SOP
|
|
|
Base Product Number
|
