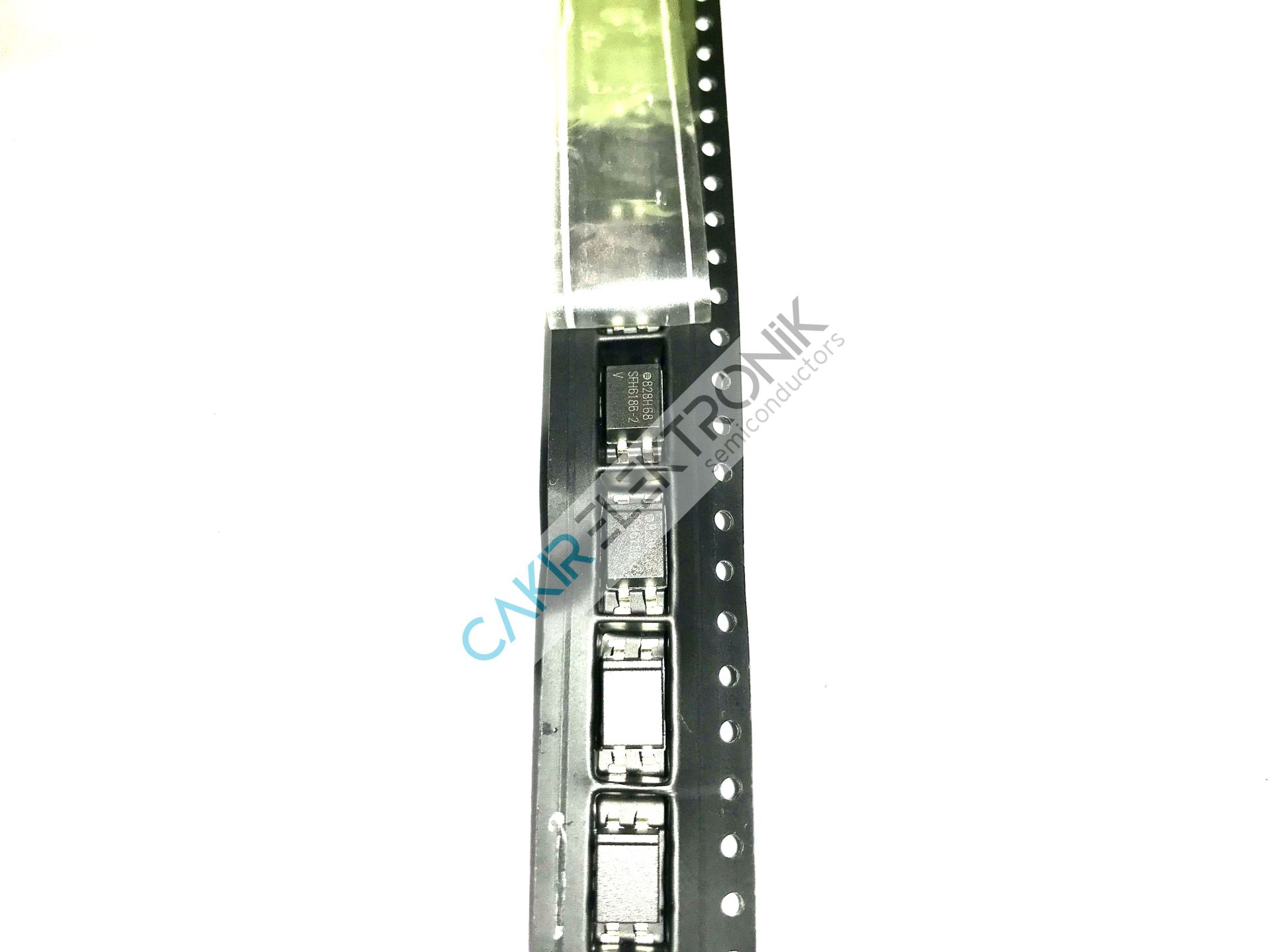

SFH6186-2T , SFH6186 , SFH6186 , Optoisolator Transistor Output 5300Vrms 1 Channel 4-SMD
Kategori
Stok Kodu
11-5257
1,00 USD + KDV
42,99 TL
Kalan Stok : 25
SFH6186-2T , SFH6186 , SFH6186 , Optoisolator Transistor Output 5300Vrms 1 Channel 4-SMD
|
Manufacturer
|
Vishay Semiconductor Opto Division
|
|
|
Series
|
-
|
|
|
Packaging
|
Tube
|
|
|
Part Status
|
Active
|
|
|
Number of Channels
|
1
|
|
|
Voltage - Isolation
|
5300Vrms
|
|
|
Current Transfer Ratio (Min)
|
63% @ 1mA
|
|
|
Current Transfer Ratio (Max)
|
125% @ 1mA
|
|
|
Turn On / Turn Off Time (Typ)
|
6µs, 5.5µs
|
|
|
Rise / Fall Time (Typ)
|
3.5µs, 5µs
|
|
|
Input Type
|
DC
|
|
|
Output Type
|
Transistor
|
|
|
Voltage - Output (Max)
|
55V
|
|
|
Current - Output / Channel
|
50mA
|
|
|
Voltage - Forward (Vf) (Typ)
|
1.1V
|
|
|
Current - DC Forward (If) (Max)
|
60 mA
|
|
|
Vce Saturation (Max)
|
400mV
|
|
|
Operating Temperature
|
-55°C ~ 100°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
4-SMD, Gull Wing
|
|
|
Supplier Device Package
|
4-SMD
|
|
|
Base Product Number
|
