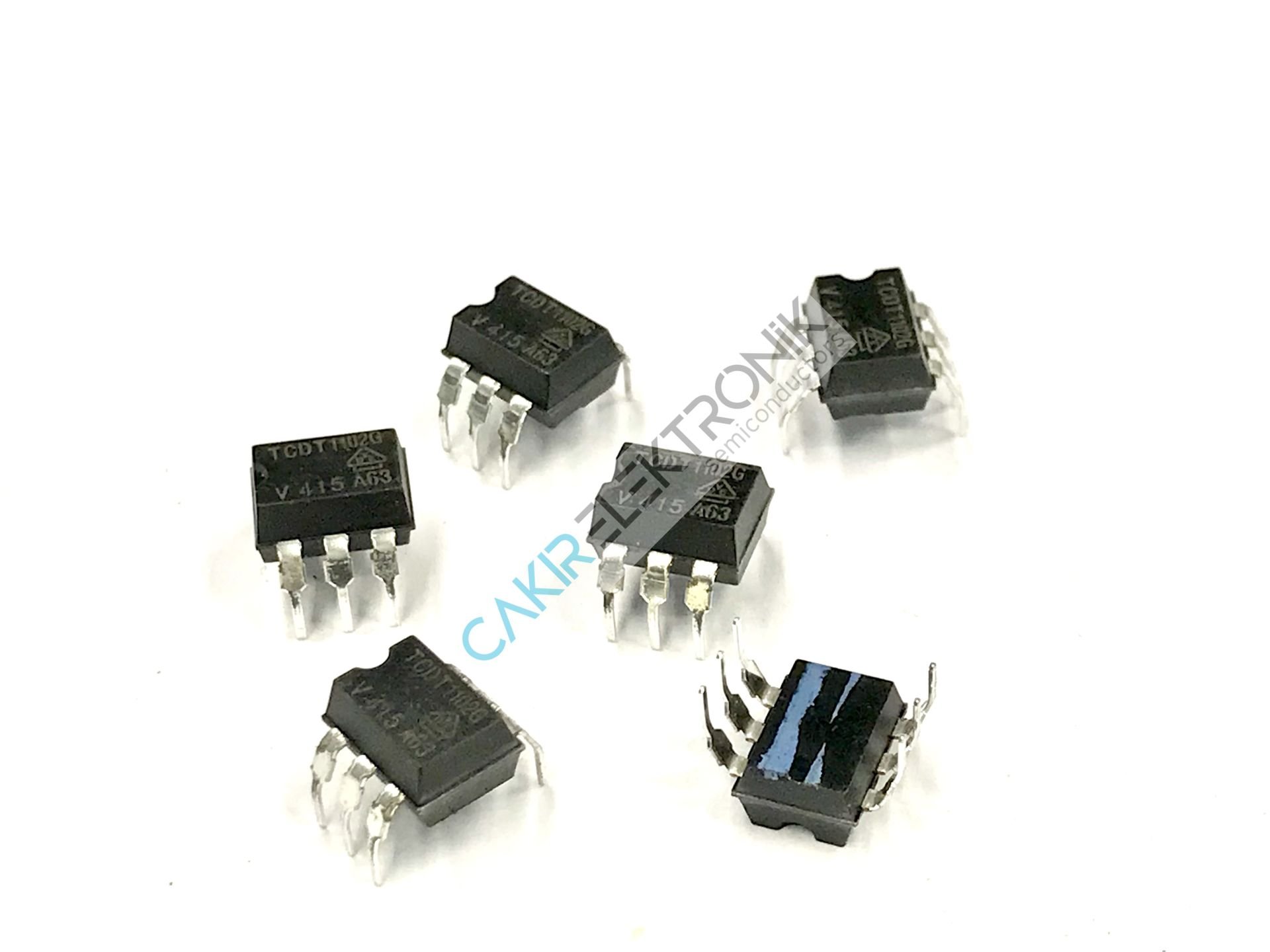

TCDT1102G , 1102G DIP , Optoisolator Transistor Output 5000Vrms 1 Channel 6-DIP
Kategori
Stok Kodu
11-1010
0,55 USD + KDV
23,35 TL
Kalan Stok : 30
TCDT1102G , 1102G DIP , Optoisolator Transistor Output 5000Vrms 1 Channel 6-DIP
|
Packaging
|
Tube
|
|
|
Part Status
|
Active
|
|
|
Number of Channels
|
1
|
|
|
Voltage - Isolation
|
5000Vrms
|
|
|
Current Transfer Ratio (Min)
|
63% @ 10mA
|
|
|
Current Transfer Ratio (Max)
|
125% @ 10mA
|
|
|
Turn On / Turn Off Time (Typ)
|
11µs, 7µs
|
|
|
Rise / Fall Time (Typ)
|
7µs, 6.7µs
|
|
|
Input Type
|
DC
|
|
|
Output Type
|
Transistor
|
|
|
Voltage - Output (Max)
|
32V
|
|
|
Current - Output / Channel
|
50mA
|
|
|
Voltage - Forward (Vf) (Typ)
|
1.25V
|
|
|
Current - DC Forward (If) (Max)
|
60 mA
|
|
|
Vce Saturation (Max)
|
300mV
|
|
|
Operating Temperature
|
-55°C ~ 110°C
|
|
|
Mounting Type
|
Through Hole
|
|
|
Package / Case
|
6-DIP (0.400", 10.16mm)
|
|
|
Supplier Device Package
|
6-DIP
|
|
|
Base Product Number
|
