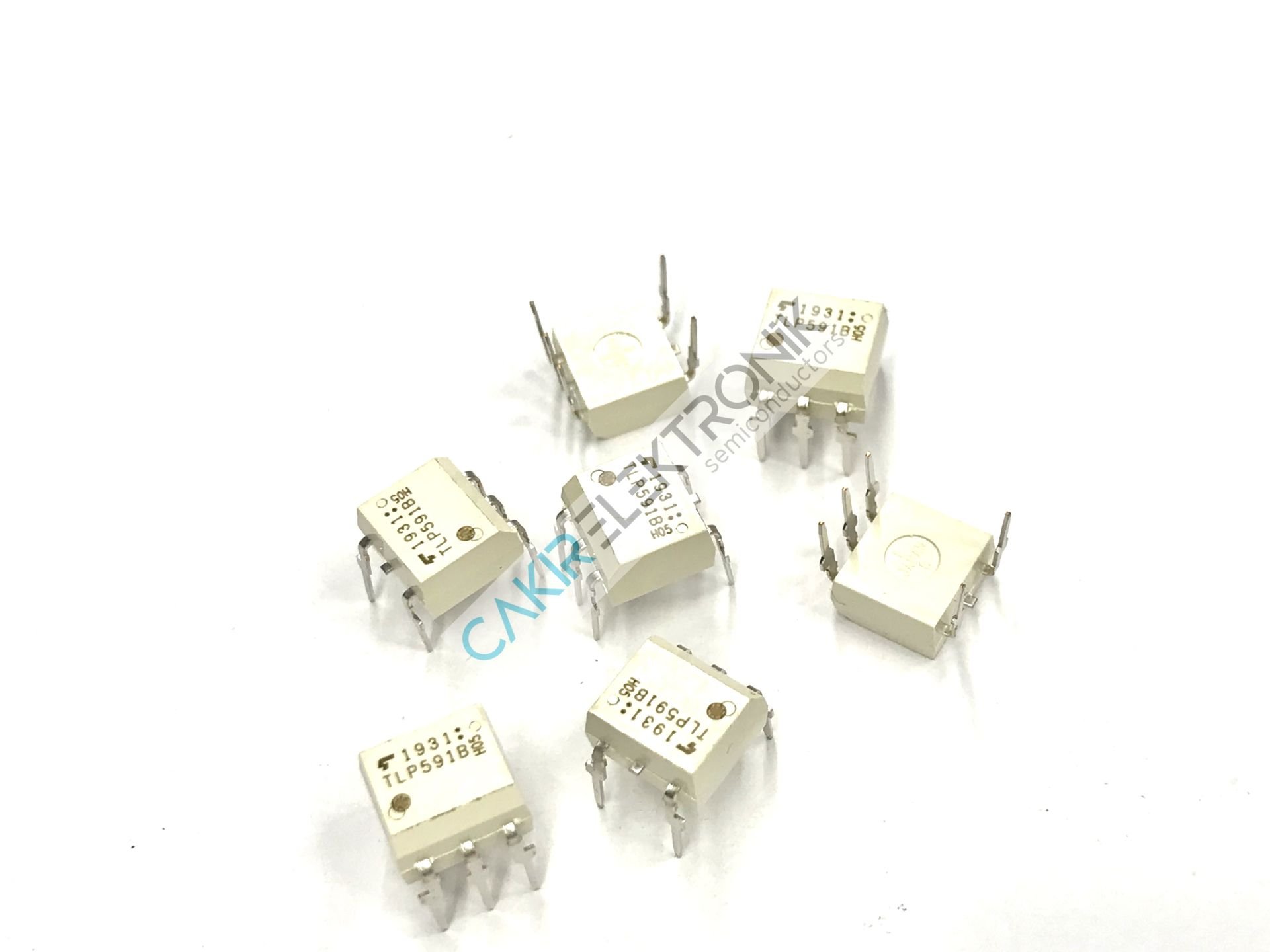

TLP591B , TLP591 , Optoisolator Photovoltaic Output 2500Vrms 1 Channel 6-DIP, 5 Lead
Kategori
Stok Kodu
11-5275
3,50 USD + KDV
159,50 TL
Kalan Stok : 20
TLP591B , TLP591 , Optoisolator Photovoltaic Output 2500Vrms 1 Channel 6-DIP, 5 Lead
|
Manufacturer
|
Toshiba Semiconductor and Storage
|
|
|
Series
|
-
|
|
|
Packaging
|
Tube
|
|
|
Part Status
|
Last Time Buy
|
|
|
Number of Channels
|
1
|
|
|
Voltage - Isolation
|
2500Vrms
|
|
|
Current Transfer Ratio (Min)
|
-
|
|
|
Current Transfer Ratio (Max)
|
-
|
|
|
Turn On / Turn Off Time (Typ)
|
200µs, 3ms
|
|
|
Rise / Fall Time (Typ)
|
-
|
|
|
Input Type
|
DC
|
|
|
Output Type
|
Photovoltaic
|
|
|
Voltage - Output (Max)
|
7V
|
|
|
Current - Output / Channel
|
24µA
|
|
|
Voltage - Forward (Vf) (Typ)
|
1.4V
|
|
|
Current - DC Forward (If) (Max)
|
50 mA
|
|
|
Vce Saturation (Max)
|
-
|
|
|
Operating Temperature
|
-55°C ~ 125°C
|
|
|
Mounting Type
|
Through Hole
|
|
|
Package / Case
|
6-DIP (0.300", 7.62mm), 5 Leads
|
|
|
Supplier Device Package
|
6-DIP, 5 Lead
|
|
|
Base Product Number
|
